Ilda Dmx SD Card Text Animation Laser Projector Rgb Laser 4W 6W

Description：

▶：4W Laser power for EM-RGB246 MINI and EM-RGB246R MINI Red1w (638nm)  Green1w (520nm) Blue2w (450nm)

▶：6W Laser power for EM-RGB270 MINI and EM-RGB270R MINI Red1.5w (638nm)  Green1.5w (520nm) Blue3w (450nm)

▶：7W Laser power for EM-RGB271 MINI and EM-RGB271R MINI Red2w (638nm)  Green2w (520nm) Blue3w (450nm)

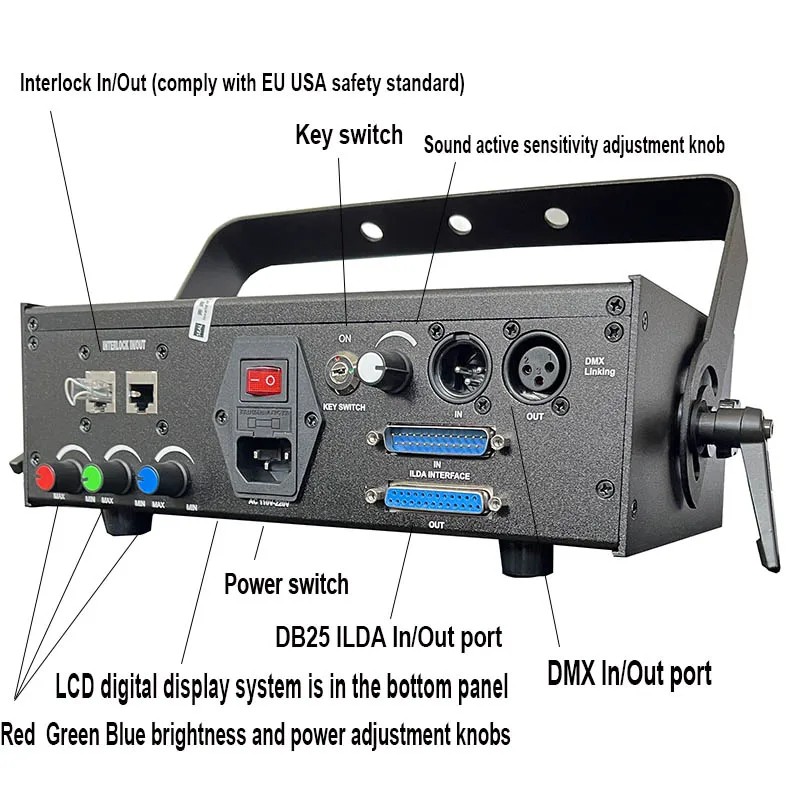

▶：Play mode :Auto DMX512, Sound active, ILDA, Interlock in/out+scan fail safeguard(It is USA EU laser safety standard)

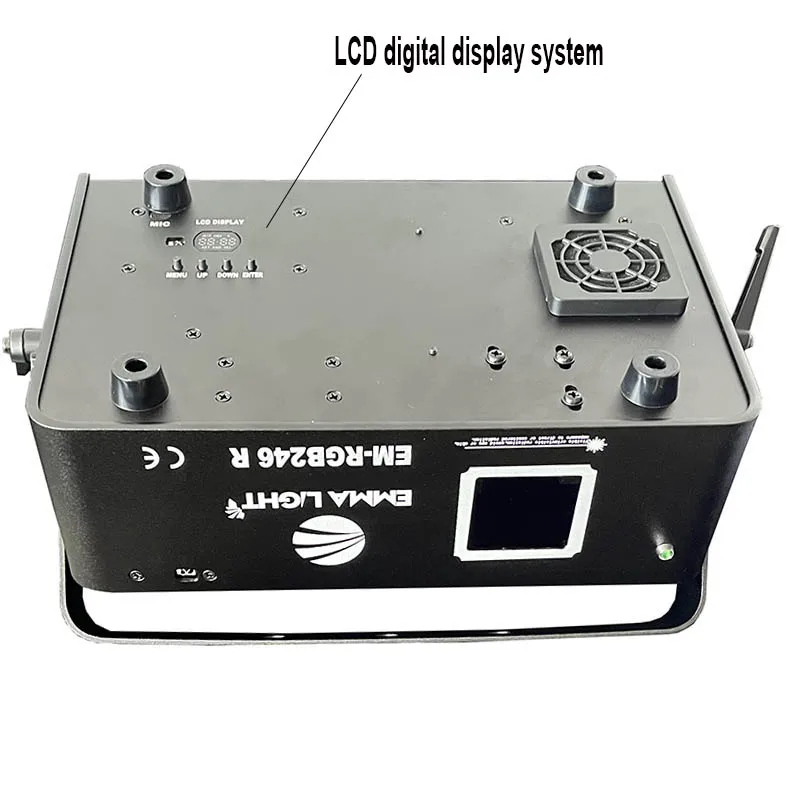

▶：Control panel : key button screen
▶：Scanning speed : 30KPSS high-speed scanning galvanometer, scanning angle ±25°, input signal ±5V, linear distortion <2%.
▶：Laser effects : Built-in 128 kinds of beam,for sd card version,there are extra 2600 animation effects in sd card
▶：Laser modulation: analog modulation as default
▶：Aluminum chassis: （other company use iron chassis which is easy to get rusty ,Aluminum chassis is better for heat dissipation

​▶：RGB246 MINI EM-RGB270 EM-RGB271 MINI Machine size/weight : 265*180*100mm/2.2kg  pakcing box size /Gross weight :31X24X17CM/3KG

▶：RGB246R MINI EM-RGB270R  EM-RGB271R MINI Machine size/weight : 270X180mmX95mm/2.3kg Packing box size/weight :31X27X15/3KG

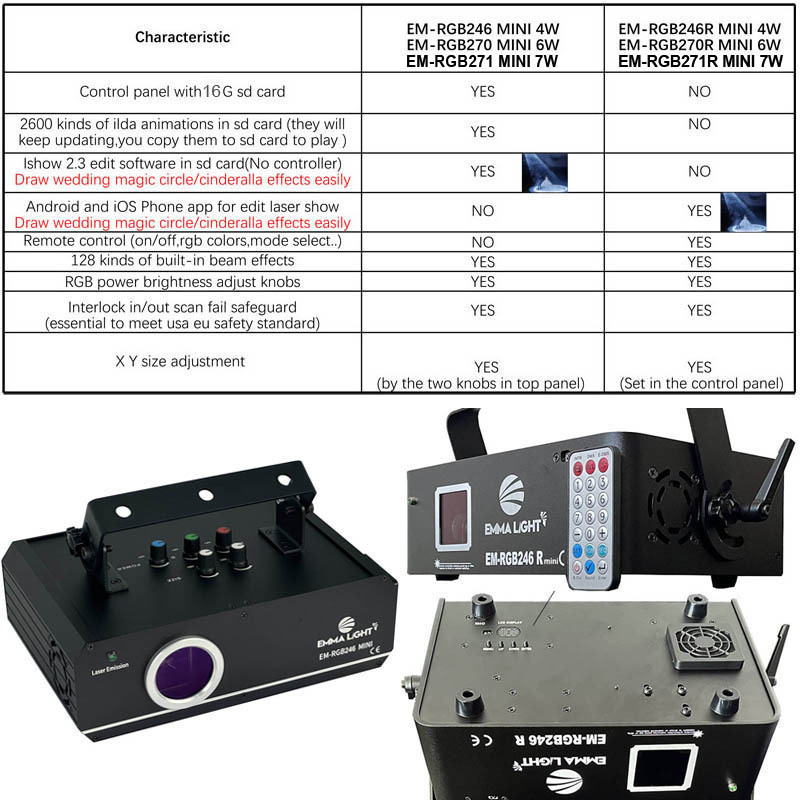

For EM-RGB246 MINI  EM-RGB270 MINI EM-RGB271 MINI

There is a free 16G sd card which include ishow software(no controller) and 2600 kinds of beam&animation programs in sd card(some animation are copied from pangolin quickshow software) 1)you can type text easily in ishow software,export them into ilda file,then copy it to sd card for laser projection 2)the ishow software accept the plt format picture(you can create plt format picture by coreldraw or other picture edit software)you can import plt format picture into ishow software,expport them into ilda file,the copy it to sd card laser projection.3)there is  a playlist editor in the sd card,you can select whatever programs you like in sd card and put them together with your own edited logos .text etc,then make them into your own unique shows4) meanwhile you can adjust the size of patterns and play speed 5)if you do not show interest in animation show,this machine have amazing beam show effects,more than 128 kinds,which is a feast to the eyes,if you buy the laser light without sd card from other company,you can not edit laser show by yourself,it usually only have simple effects,

For EM-RGB246R MINI  EM-RGB270R MINI  EM-RGB271R MINI

1)There is a remote controller,it can control light on and off,color change,rgb or single red green blue yellow pink white cyan color and  play mode change,like select auto mode,sound active,dmx mode, select the sequence of the programs,there are built-in 14 sequences of the programs to select etc 2) Android IOS phone app for show edit,you can edit your own laser shows in your phone and you can control the laser machine live by phone app or you can upload your edited show to laser machine,you can also adjust the size and colors by phone

Laser effects:

Except for the rgb full colors,there are single red green blue yellow pink cyan available

Machine picture

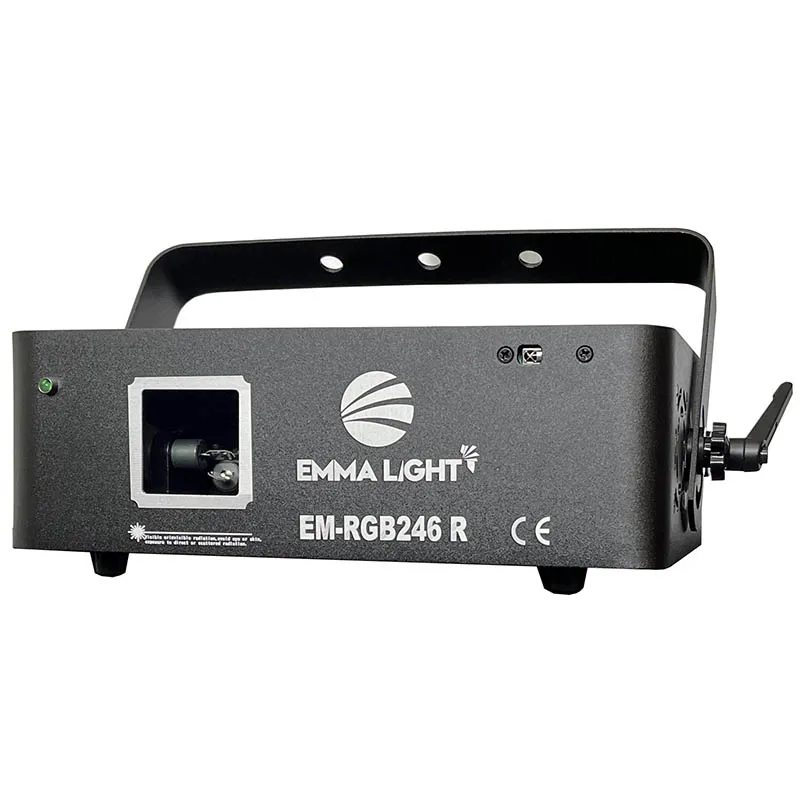

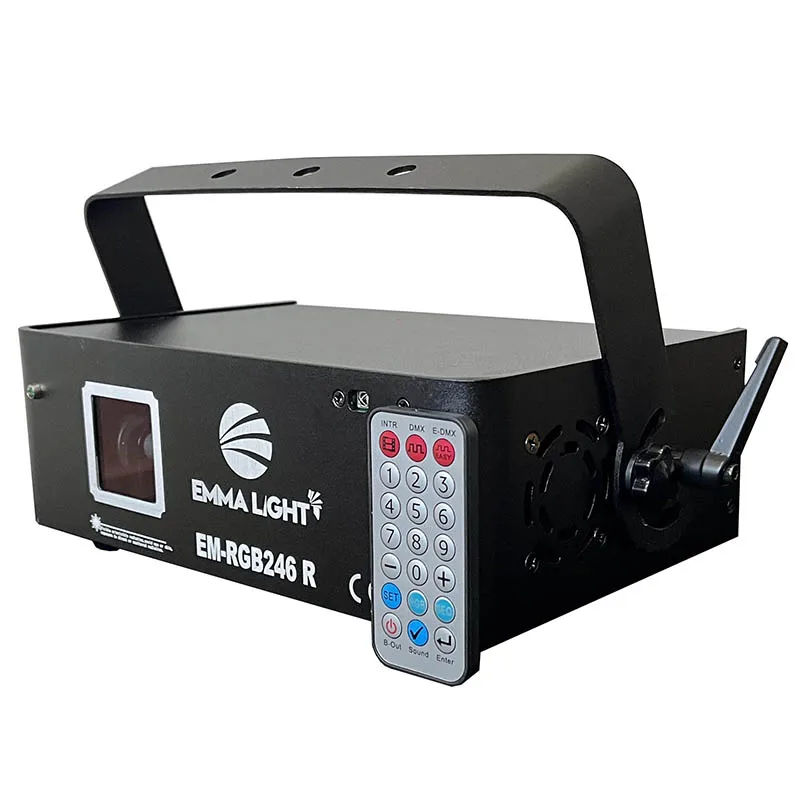

RGB246R MINI

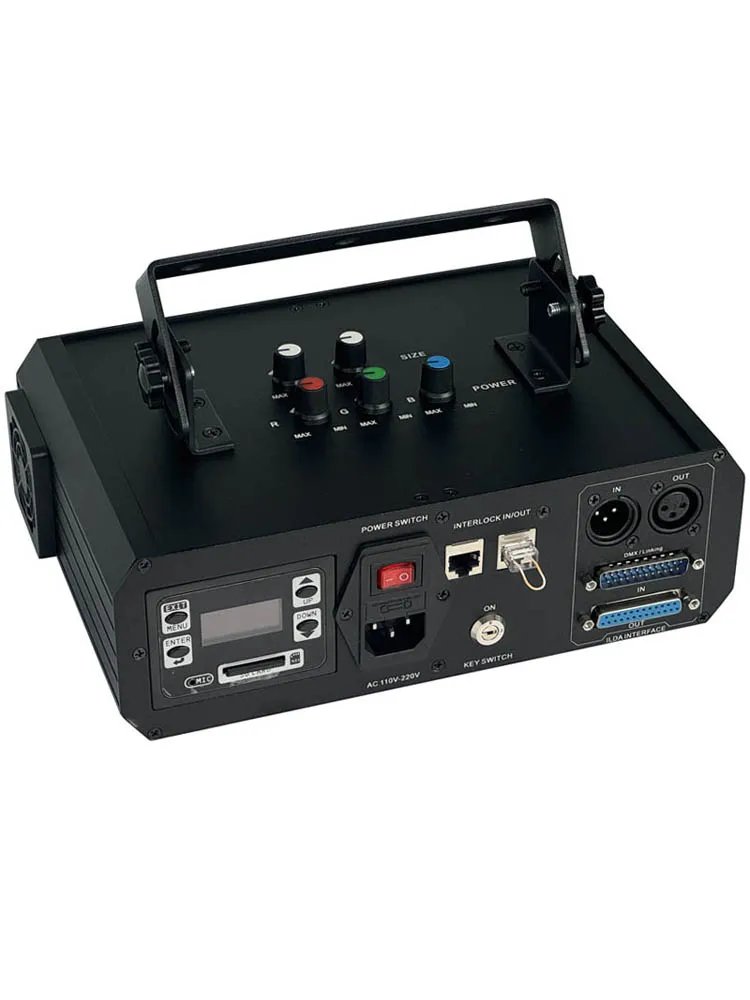

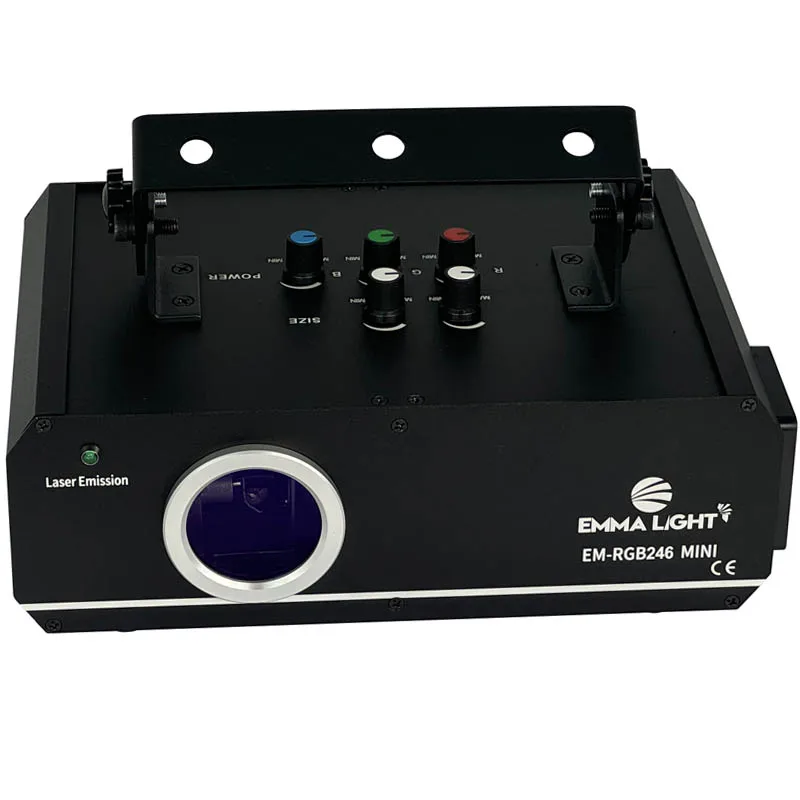

RGB246 MINI

Ce and Rohs Certificate

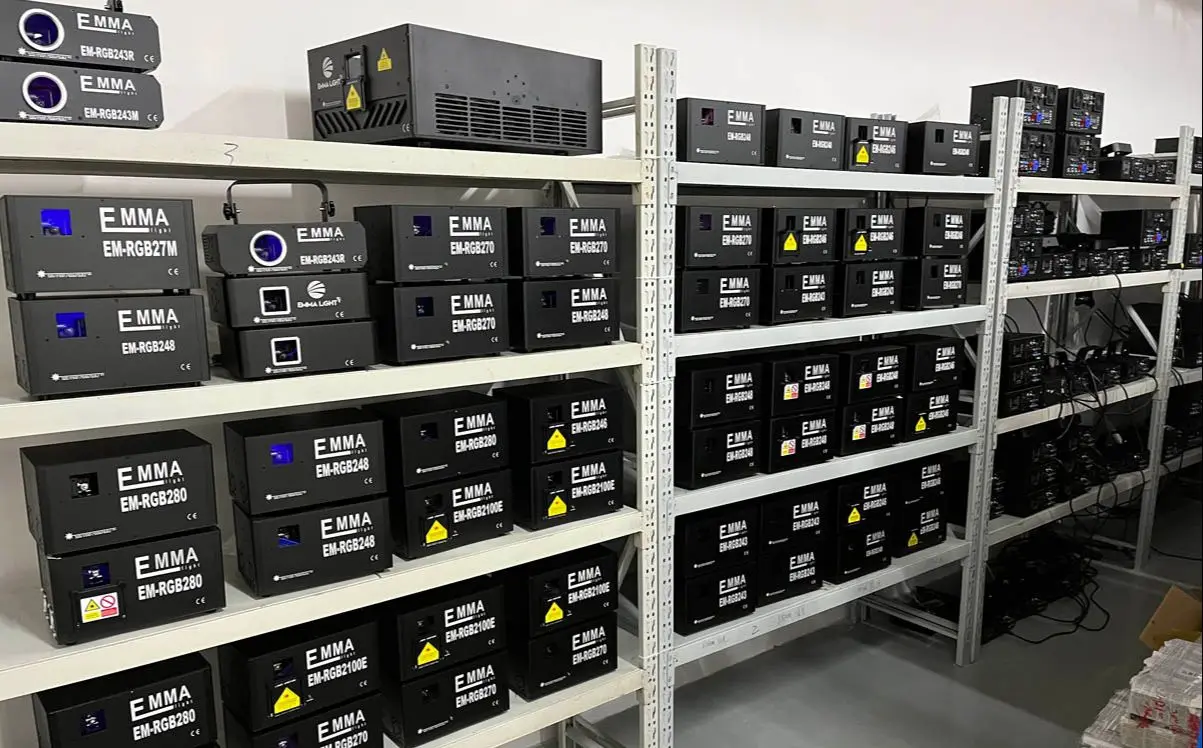

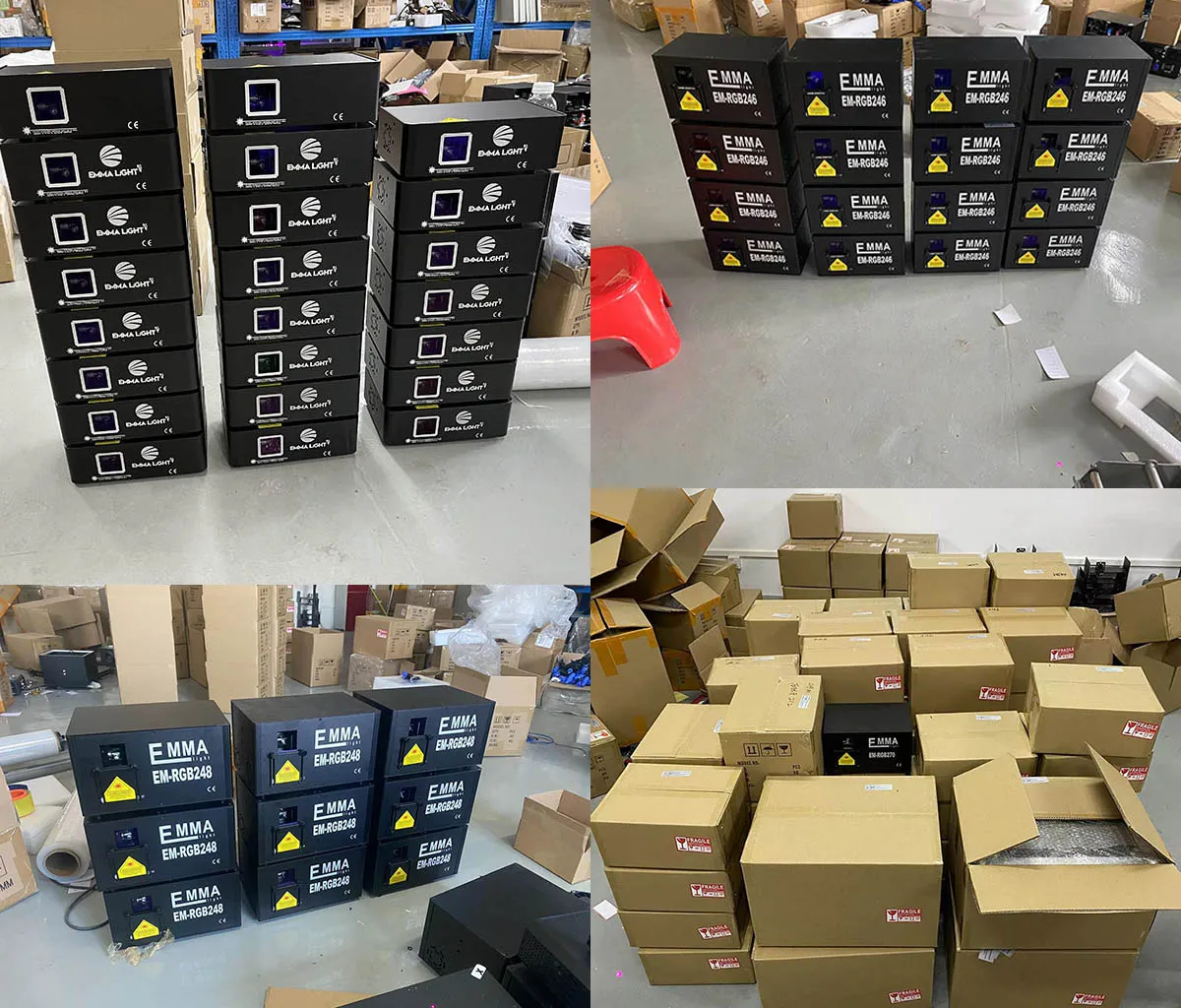

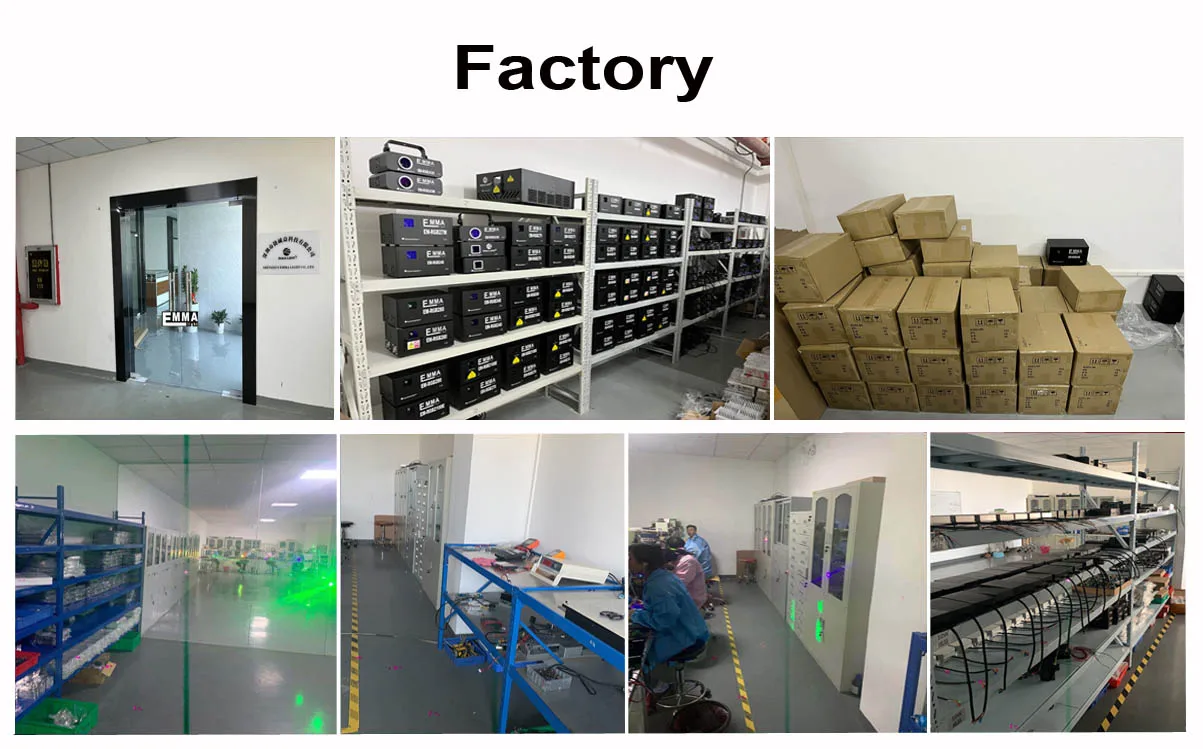

Factory information:

We are the professional manufacturer for the laser machine,with more than 13
years development and reseach , our product has stable quality and
favorable price,OEM is also warmly welcomed !
